Thermowave Gaskets and Plates
BES supplies replacement gaskets and plates for Thermowave plate heat exchangers. Thermowave Model List as below.
| Thermowave PLATES AND GASKETS MODEL LIST | ||||||
| TL90PP | TL90SS | TL150PP | TL150SS | TL200PP | TL200SS | TL250PP |
| TL250SS | TL400SS | TL500PP | TL500SS | TL650PP | TL650SS | TL850PP |
| TL850SS | TL400 SEMI-WELDED | TL1500SS | TL1100SS | |||

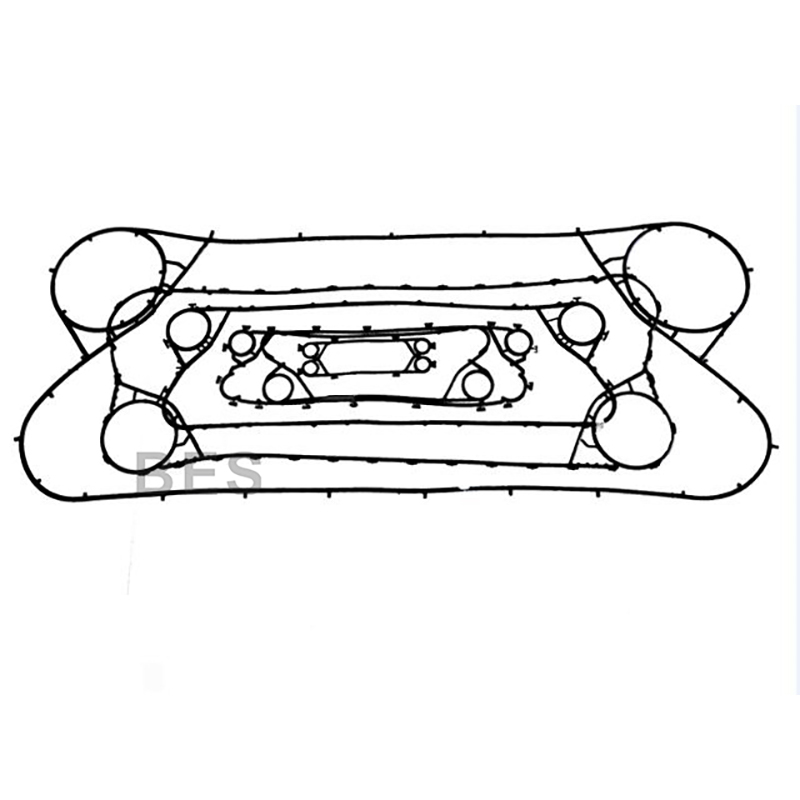

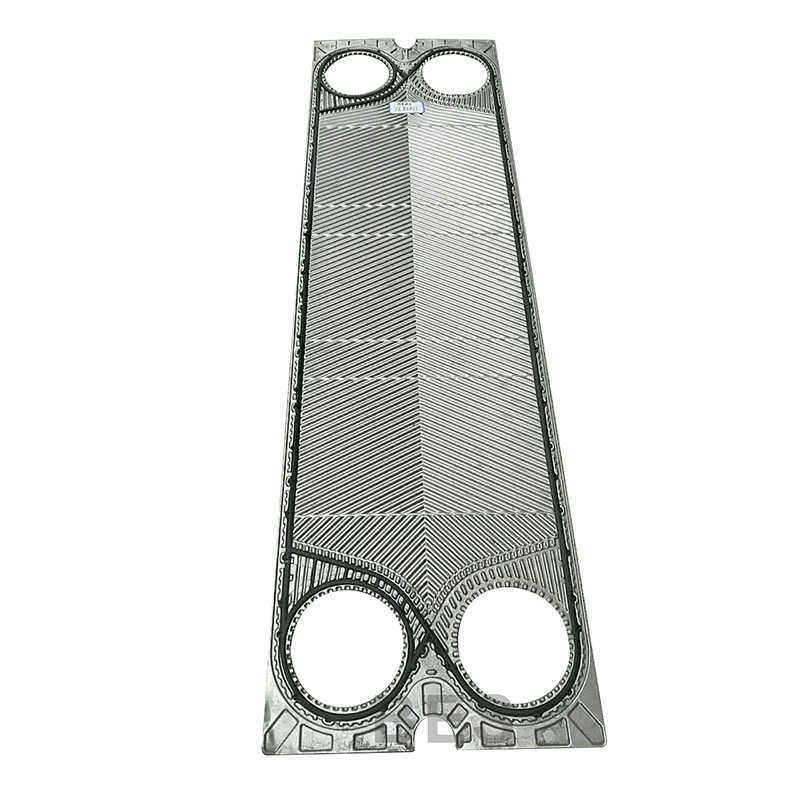

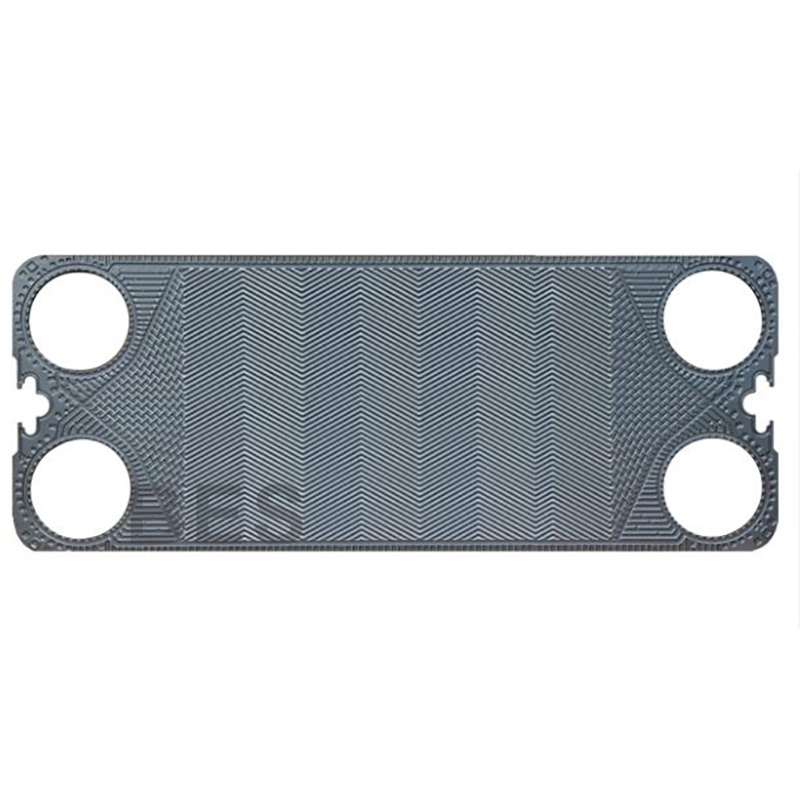

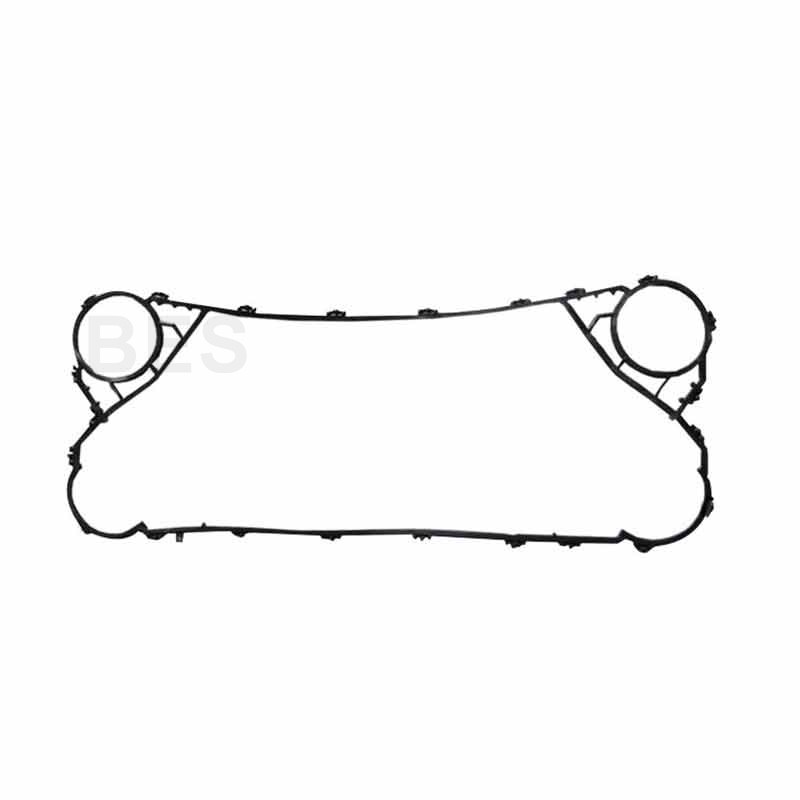

Replacement plates and gaskets for Thermowave
BES manufactures replacement plates and gaskets for Thermowave gasketed plate heat exchangers, covering the TL plates listed below — from the TL50P and TL90P up to the TL850S. Each plate matches the original chevron angle, corrugation depth, port geometry and overall dimensions, so it drops into the existing Thermowave frame without modification. Gasket compounds are available in NBR, EPDM, HNBR and Viton, and plate materials run from SS304 / SS316L to titanium and Hastelloy C-276 — the full material selection tables are on our replacement plates & gaskets page.
| Thermowave model | Chevron angle | Corrugation depth (mm) |
Port diameter (mm) |
Port centre distance (mm) |
Overall plate size (mm) |
|---|---|---|---|---|---|
| TL50P | 128° | 2 | φ43 | 363 × 125 | 519 × 244 |
| TL90P | 128° | 2 | φ43 | 565 × 125 | 721 × 244 |
| TL150P | 128° | 2 | φ43 | 825 × 125 | 981 × 244 |
| TL90S | 54.7° | 3.8 | φ43 | 565 × 125 | 721 × 244 |
| TL150S | 54.7° | 3.8 | φ43 | 825 × 125 | 981 × 244 |
| TL200P | 127° | 2.1 | φ84.6 | 620 × 212 | 796 × 369 |
| TL400P | 127° | 2.1 | φ84.6 | 1208 × 212 | 1384 × 369 |
| TL200S | 60° / 119° | 3.8 | φ85 | 620 × 212 | 796 × 369 |
| TL400S | 60° / 119° | 3.8 | φ85 | 1208 × 212 | 1384 × 369 |
| TL250P | 126° | 2.4 | φ107 | 774 × 256 | 1014 × 438 |
| TL500P | 126° | 2.4 | φ107 | 1256 × 256 | 1496 × 438 |

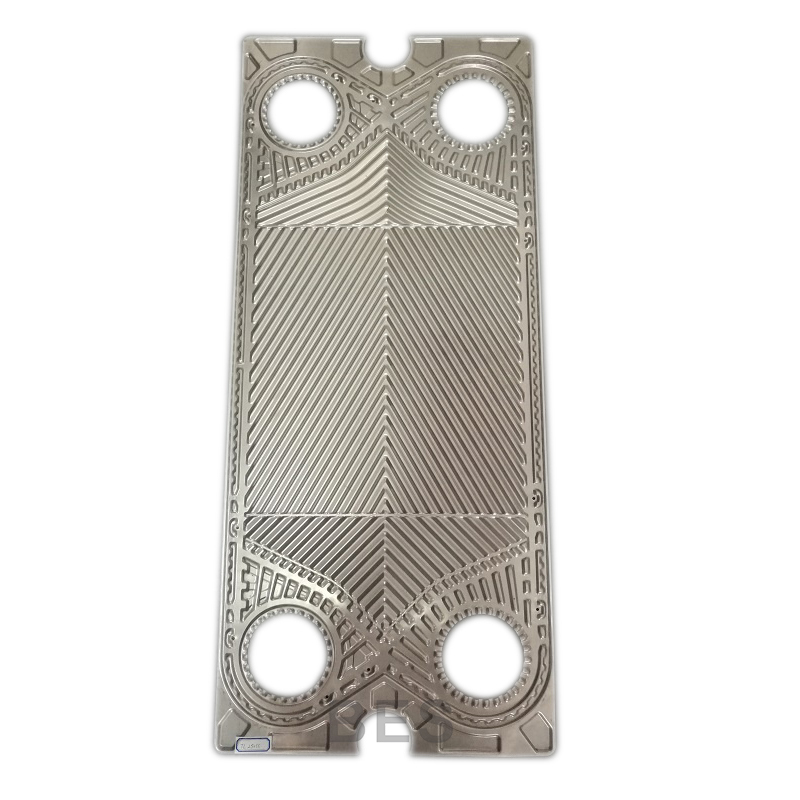

| TL250S | 60° / 127.5° | 3.8 | φ107 | 774 × 256 | 1014 × 438 |
| TL500S | 60° / 127.5° | 3.8 | φ107 | 1256 × 256 | 1496 × 438 |
| TL650P | 124° | 2.5 | φ206 | 1153 × 305 | 1495 × 586 |
| TL850P | 124° | 2.5 | φ206 | 1693 × 305 | 2035 × 586 |
| TL650S | 58.6° / 125.6° | 4 | φ206 | 1153 × 305 | 1495 × 586 |
| TL850S | 125.6° | 4 | φ206 | 1693 × 305 | 2035 × 586 |
Dimensions in millimetres. Where two chevron angles are shown they are the two pass angles of the same plate. The P and S plates share the same frame size but differ in corrugation depth and chevron angle — the P plates trade some thermal performance for a lower pressure drop — so quote the exact designation (on some lists the P and S plates are written as PP and SS; it is the same plate).
Other Thermowave models already in our mould range, with parameters available on request: TL400 semi-welded, TL1100SS and TL1500SS. Models not listed here are being added to our mould range as tooling is completed — contact us for the latest availability.
Send the model from your nameplate
Send us the Thermowave model and the plate count from your nameplate — or a photo of it — and we confirm the matching plates and gaskets, materials and price within one working day.
BES Heat Exchangers is an independent manufacturer. Thermowave is a trademark of its respective owner; all cross references are for model-comparison purposes only.
