Project Description

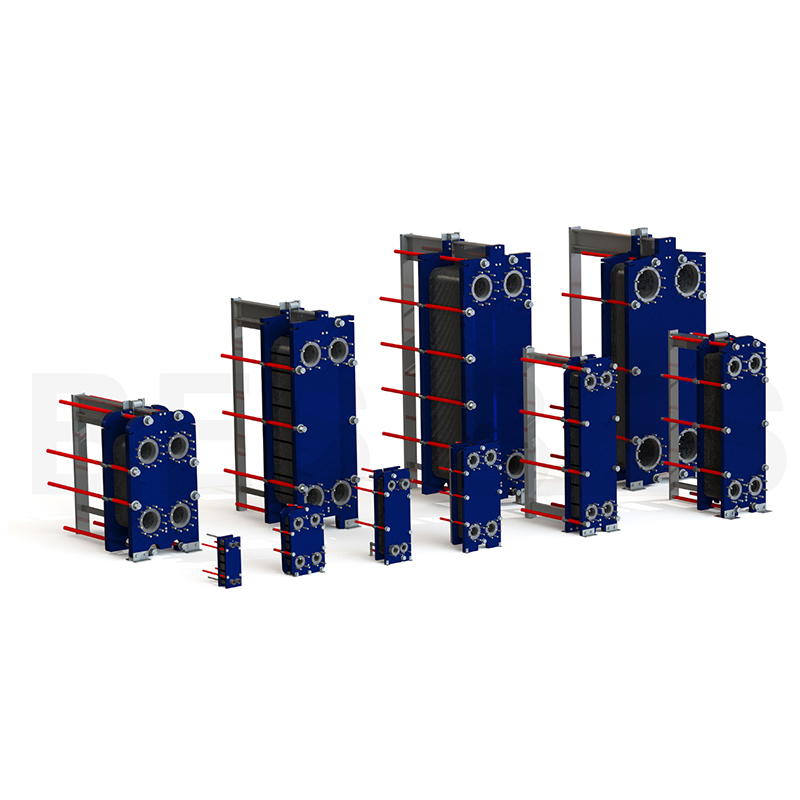

Gasket Plate Heat Exchanger replacement of Tranter, Danfoss, Sondex, Vicarb heat exchanger models

Introduction

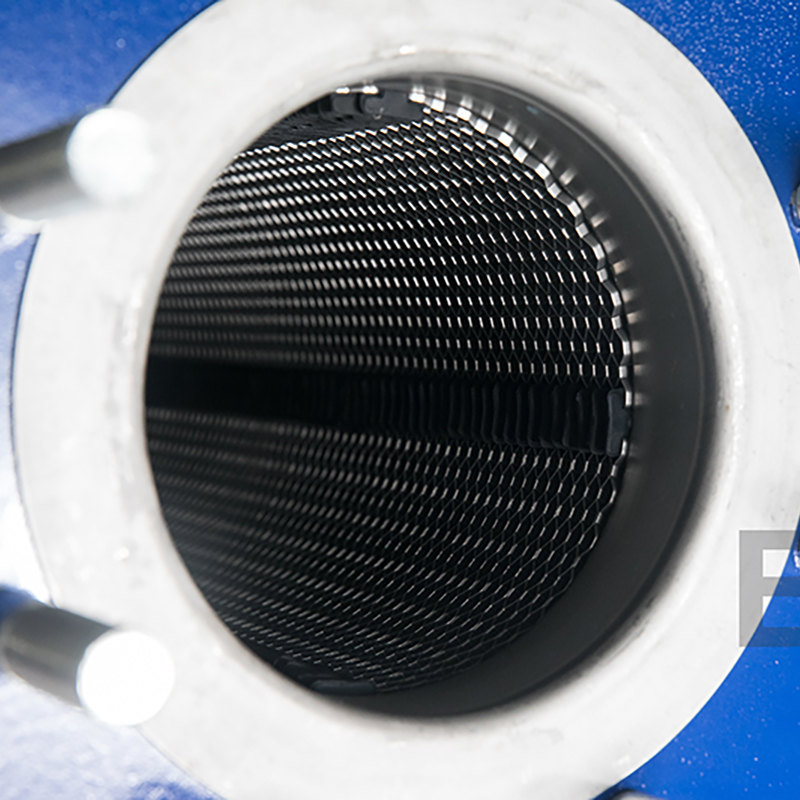

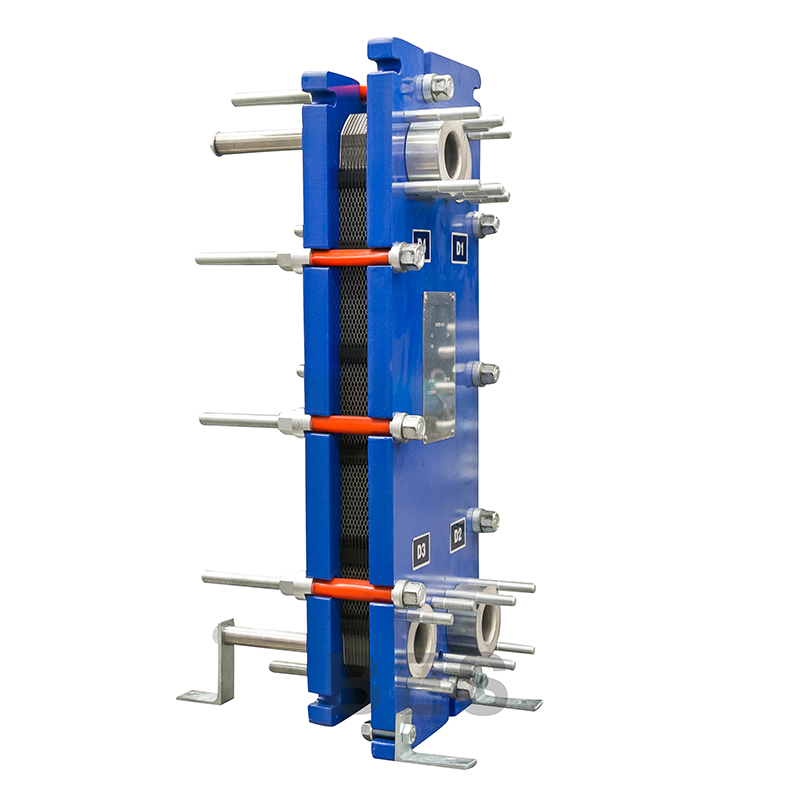

BES gasket plate heat exchanger consists of corrugated metal plates with corner holes for heat transfer between two fluids. The plates are assembled with a movable pressure plate between the fixed frame plates and compressed by tightening bolts. The gasket is installed on the plate to seal the channel and guide the fluid to the alternative channel. The number of plates is determined by the flow rate, the physical properties of the fluid, the pressure drop and the temperature. The corrugation of the plate promotes fluid turbulence to achieve high heat transfer efficiency. The plate is suspended between the up and down guide rods to fix it.

Production feature

– High heat transfer coefficient: The special corrugated design on the heat transfer plate can make the fluid form strong turbulence at extremely low flow velocity, and the self-purification effect of turbulence can prevent the generation of dirt, so that the heat transfer coefficient of the plate heat exchanger is 3-5 times compared with the tube Shell heat exchanger.
– Economical: Under the premise of the same heat exchange capacity, compared with the shell and tube type: less investment, low operating costs, low maintenance costs.
– Adjustability: Only need to increase and decrease the plate to meet the requirement of process changes.
– Compact structure: the occupied space is only 1/2-1/3 compared with the shell and tube type.
– Easy to clean and maintain.

Gasket plate heat exchanger-02

Product Configuration

construction of gasket heat exchanger 02

Connection Type

connection type of gasket heat exchanger

Construction

construction of gasket plate heat exchanger

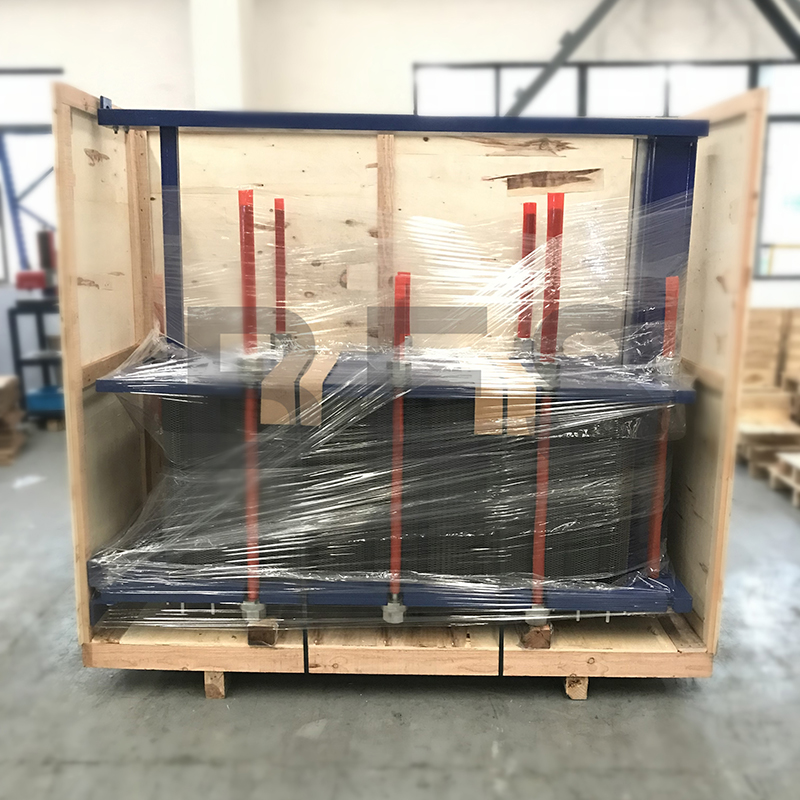

Packing Method: Wooden box or carton box

Gasket Plate Heat Exchanger Product Data

MODEL Height H[mm] Width  W[mm] Max Length L[mm] Vertical port Distance VC(mm) Horizontal port Distance HC(mm) MAX Pressure[barg] Port Size Max water flow rate [m3/h]
B30 480 180 620 257 60 10 Pipe 1 1/4″ 18
B60B 920 320 1435 640 140 10/16 DN50/2″ 36
B60H 920 320 1435 640 140 10/16 DN50/2″ 36
LB60B 1278 320 1445 1036 140 10/16 DN50/2″ 36
LB100B 1888 480 3242 1338 225 10/16 DN100/4″ 140
LB100P 1888 480 3242 1338 225 10/16 DN100/4″ 140
SH60H 704 400 1430 380 203 10/16 DN65/2 1/2″ 50
SH200H 1397 800 3305 698 363 10/16 DN200/8″ 600
B100B 1045 454 1795 719 225 10/16 DN100/4″ 140
B100H 1045 454 1795 719 225 10/16 DN100/4″ 140
B150B 1815 610 3246 1294 298 10/16 DN150/6″ 360
B150H 1815 610 3246 1294 298 10/16 DN150/6″ 360
B200B 2260 780 3290 1478 353 10/16 DN200/8″ 600
B200H 2260 780 3290 1478 353 10/16 DN200/8″ 600
B250B 2595 920 3350 1939 439 10/16 DN250/8″ 750
B250H 2595 920 3350 1939 439 10/16 DN250/8″ 750
B300B 2900 1150 3378 1842 596 10/16 DN300/12″ 997
B450H 3530 1430 6204 2468 720 10/16 DN450/18″ 1350
Q030 1245 615 1795 743 310 10/16 DN100/4″ 140
V4 590 200 620 430 62 10 DN25/1″ 18
GC008 774 180 620 640 60 10 DN25/1″ 18
SIZE guide

Our service

  • Sample order with fast delivery time

  • Fast reply to your inquiry within 8 hours

  • OEM service is also accepted

  • Our engineer has more than 20 years experience about heat exchanger design and maintenance. We could design the best solution for you based on your technical information within 3 hours.  customer made is also accepted.

FAQ

Yes, we accept sample order for quality test. Mixed samples are acceptable.

Sample needs 2-5 days, quantity production needs 7-15days based on the final quantity.

Yes, we support wholesale of different product combinations.

Yes, we have our own software to design the heat exchanger, could give you calculation based on your information within 3hours.

For sample order ,we usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive.

For quantity order, we normally send by ship or airplane, price term can be EXW, FOB, FCA CIF DDU DDP etc.

BES can design the heat exchanger within 3 hours for you when you supply us technical information.
